Selecting the right flexible drive system is critical for precision, efficiency, and longevity in industrial manufacturing. Design engineers and production managers face complex decisions balancing torque requirements, environmental conditions, and spatial constraints. This article explores criteria for evaluating flexible drives, key system options, performance comparisons, and practical recommendations for various machining and finishing applications. You will gain actionable knowledge to choose systems that enhance performance, reduce maintenance costs, and extend equipment life in demanding production environments.

Table of Contents

• Criteria For Selecting Flexible Drive Systems
• Exploring Flexible Drive System Options And Their Benefits
• Comparing Flexible Drive Systems: Efficiency, Lifespan, And Precision
• Practical Recommendations For Choosing Flexible Drive Systems
• Explore BIAX Flexible Shaft Solutions For Your Manufacturing Needs

Key takeaways

Point	Details
Efficiency gains	Flexible drive systems offer improved efficiency, adaptability, and precision for complex manufacturing processes.
System variety	Different types of flexible drives have distinct strengths in torque handling, speed, and operational conditions.
Maintenance factors	Proper tension and alignment critically impact belt driven system longevity and performance.
Innovation impact	Innovations like Nidec FLEXWAVE and VICO Flex Drum systems address specific industrial challenges effectively.

Criteria for selecting flexible drive systems

Evaluating flexible drive systems requires understanding multiple technical and operational factors. Torque requirements and operational speed form the foundation of any selection process. Your application dictates whether you need high torque at lower speeds for heavy machining or rapid response at speeds exceeding 10,000 RPM for precision finishing work.

Environmental factors significantly affect system performance and longevity. The presence of grease, fat, ice, or dry residues alters friction characteristics and belt behavior. Systems operating in slippery conditions require different configurations than those in dry, dusty environments. Temperature extremes, vibration levels, and exposure to chemicals or abrasives also influence material selection and drive design.

Belt tension management is non negotiable for system reliability. Excessively high or low tension reduces belt life and damages bearings, shafts, and other components. Insufficient tension causes belt slippage and ratcheting, while excessive tension creates unnecessary stress on mechanical elements. Achieving optimal tension requires careful calculation based on load characteristics and pulley geometry.

Alignment precision directly impacts component lifespan and energy efficiency. Proper alignment avoids lateral forces and bending moments that accelerate wear. Misalignment causes uneven load distribution, increased friction, and premature failure of bearings and shafts. Regular alignment checks during installation and maintenance prevent costly downtime.

Spatial constraints in modern manufacturing equipment demand compact, flexible solutions. Machine builders increasingly face tight packaging requirements where traditional rigid drive systems cannot fit. Flexible shafts improve machine design efficiency by transmitting power through confined spaces while maintaining high performance. Understanding your machine’s spatial limitations guides drive system architecture decisions.

Pro Tip: Create a requirements matrix listing torque, speed, environmental conditions, space constraints, and maintenance access before evaluating drive options. This structured approach prevents overlooking critical factors and ensures comprehensive system comparison.

Key selection criteria include:

• Torque capacity matching peak and continuous load requirements
• Speed range compatibility with process demands
• Environmental resistance to contaminants and temperature extremes
• Installation space and routing flexibility
• Maintenance accessibility and service intervals
• Energy efficiency and power transmission losses
• Cost of ownership including initial investment and lifecycle expenses

Exploring flexible drive system options and their benefits

Belt drive systems offer exceptional versatility for industrial applications. They provide natural vibration dampening that protects sensitive components and reduces noise levels. Belt drives handle high torque loads efficiently while allowing some slip protection that acts as a mechanical fuse during overload conditions. This characteristic prevents catastrophic damage to expensive machinery during unexpected jamming or collision events.

Nidec FLEXWAVE systems provide customizable configurations for high precision applications requiring strain wave gear reduction. These compact units deliver exceptional positioning accuracy and zero backlash performance. The hollow shaft design allows cable and fluid routing through the center, simplifying machine architecture. Multiple ratio options enable optimization for specific speed and torque profiles.

Specialized belt systems address unique environmental challenges. VICO Flex Drum Driven reduces belt tension in applications with grease, fat, or ice that decrease friction between belt and pulley. The positive drive engagement maintains reliable power transmission even when conventional friction drives would slip. This innovation extends belt life significantly in food processing, cold storage, and similar environments.

Direct drive systems eliminate intermediate transmission elements for maximum precision. By coupling the motor shaft directly to the load, these configurations achieve superior positioning accuracy and dynamic response. Direct drives excel in high speed machining operations above 10,000 RPM where minimal inertia and instant response are critical. The simplified mechanical design reduces maintenance requirements and improves reliability.

Hydraulic motors provide unique advantages in specific applications. Hägglunds hydraulic drives for rubber industry roll mills improve safety and energy efficiency compared to electromechanical alternatives. The inherent overload protection, smooth torque delivery, and compact power density make hydraulic systems ideal for high force, low speed applications. Peak load handling capability exceeds electromechanical systems without oversizing the prime mover.

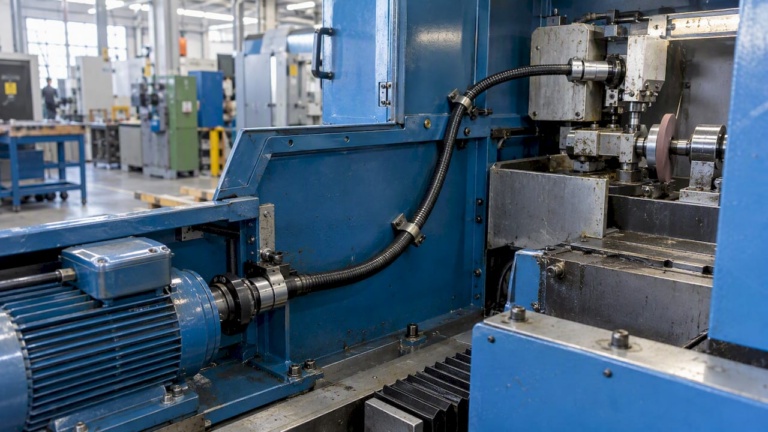

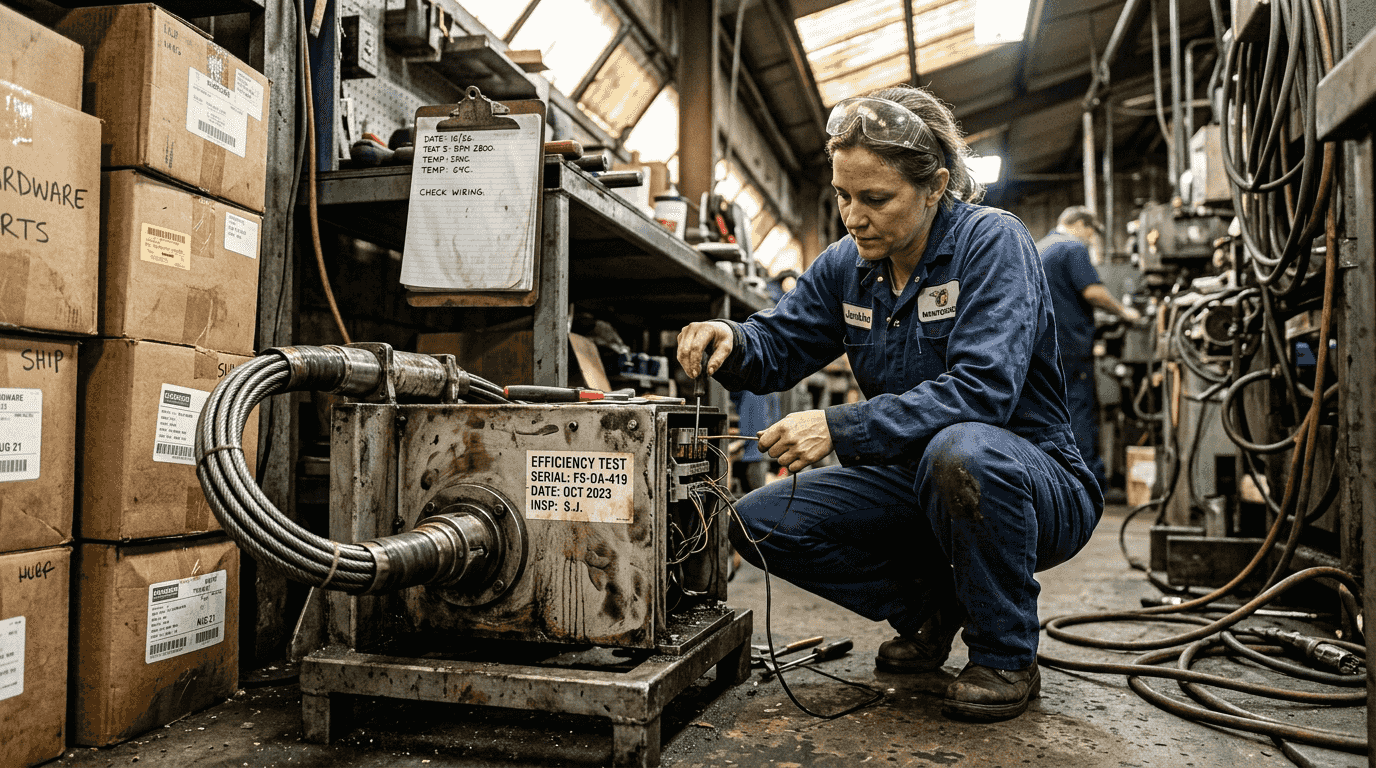

Flexible shaft drive solutions combine the benefits of remote power transmission with spatial flexibility. These systems maintain 85 to 95 percent efficiency while routing power through complex paths impossible for rigid shafts. Flexible shafts enable tool positioning in confined spaces, around obstacles, and through moving joints. This capability is invaluable for deburring, grinding, and polishing operations requiring access to hard to reach features.

Pro Tip: Match drive system response characteristics to your process dynamics. High inertia loads benefit from belt drives that smooth acceleration, while rapid positioning tasks demand direct drive responsiveness.

Drive system options by application type:

• Heavy machining and grinding: belt drives with high torque capacity and vibration dampening
• Precision positioning and high speed spindles: direct drive systems for zero backlash and fast response
• Slippery or contaminated environments: VICO Flex Drum Driven positive engagement systems
• Compact spaces and complex routing: flexible shafts for maintenance tools and finishing operations
• High force, low speed applications: hydraulic motors with superior peak load handling

Comparing flexible drive systems: efficiency, lifespan, and precision

Performance characteristics vary significantly across drive system types. Understanding these differences enables informed selection matching application requirements. Belt drives reach 98 percent efficiency when properly designed and maintained, while absorbing impact energy that protects downstream components. This mechanical fusing action prevents damage during unexpected load spikes or collisions.

Direct drive systems deliver unmatched precision and responsiveness. Positioning accuracy improves by eliminating backlash and compliance present in belt or gear transmissions. Dynamic performance benefits from reduced rotating inertia and direct coupling between motor and load. These advantages make direct drives the preferred choice for high speed machining centers operating above 10,000 RPM where every millisecond of response time matters.

Belt tension management critically affects system longevity and performance. Fixed center belt drives cause up to 3X tension variation as belts wear and stretch over time. This variation accelerates component wear and reduces system reliability. Proper tensioning systems or spring loaded idlers maintain consistent belt tension throughout the service life, maximizing performance and component longevity.

Hydraulic drives outperform electromechanical alternatives in specific scenarios. Energy efficiency improves through better peak load handling without oversizing the motor. Smooth torque delivery reduces mechanical stress and extends component life. The inherent overload protection prevents damage during jamming or overload conditions. These benefits are particularly valuable in rubber processing, mixing, and similar high torque applications.

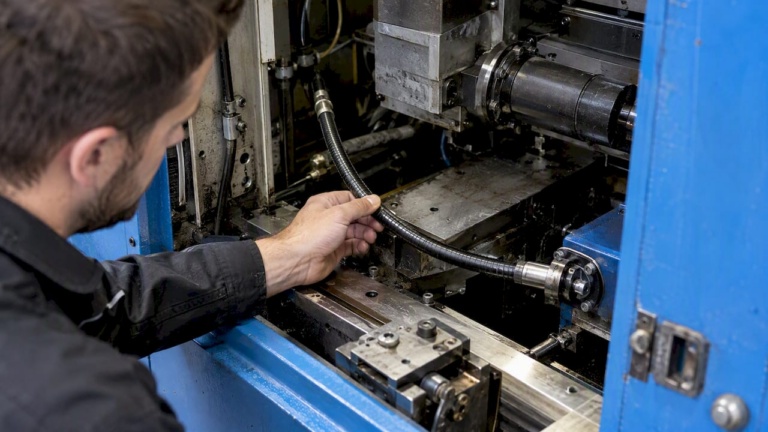

Flexible shafts maintain high efficiency even in constrained installation spaces. Power transmission losses remain below 15 percent despite complex routing paths. This performance enables compact machine designs that would be impossible with rigid shaft systems. Design versatility improves as engineers gain freedom to position motors, tools, and workpieces optimally without transmission system constraints.

Drive Type	Efficiency	Precision	Best Application	Lifespan Factor
Belt Drive	95 to 98%	Good	High torque, vibration dampening	Tension dependent
Direct Drive	90 to 95%	Excellent	High speed, zero backlash	Very high
Hydraulic	85 to 92%	Good	High force, low speed	Load dependent
Flexible Shaft	85 to 95%	Good to Excellent	Compact spaces, complex routing	Configuration dependent
VICO Flex Drum	90 to 96%	Good	Slippery environments	Extended in grease/ice

System selection trade offs:

• Belt drives sacrifice some precision for mechanical protection and cost effectiveness
• Direct drives maximize performance but offer no overload protection
• Hydraulic systems excel at force delivery but require fluid power infrastructure
• Flexible shafts enable unique machine architectures with modest efficiency penalty
• Specialized systems like VICO Flex address specific environmental challenges

Practical recommendations for choosing flexible drive systems

Selecting the optimal flexible drive system requires systematic evaluation of your specific requirements. Follow these practical steps to make informed decisions that maximize performance and minimize lifecycle costs.

1. Match drive type to torque, speed, and precision requirements of your application. Calculate peak and continuous torque loads including safety factors for unexpected conditions. Determine required speed range and acceleration rates. Specify positioning accuracy and repeatability needs. These fundamental parameters eliminate unsuitable drive types immediately.

2. Consider environmental conditions affecting system performance and longevity. Evaluate temperature extremes, humidity levels, and exposure to contaminants. Assess the presence of grease, fat, ice, and dry residues that alter friction characteristics. Chemical exposure and abrasive particles influence material selection and sealing requirements. Environmental analysis prevents premature failures and costly redesigns.

3. Use VICO Flex Drum Driven for slippery conditions where grease, fat, or ice reduce friction between belts and pulleys. The positive engagement maintains reliable power transmission when conventional friction drives fail. However, avoid this system in dry environments with residue buildup where the drum teeth can clog. Proper application matching ensures optimal performance and longevity.

4. Evaluate hydraulic options where energy efficiency and load peak reduction are priorities. Mechanical transmission drawbacks include high inertia and large size, which hydraulic drives avoid through superior power density. The smooth torque delivery and inherent overload protection benefit high force applications like mixing, calendaring, and roll mills. Consider hydraulics when these advantages outweigh the added complexity of fluid power systems.

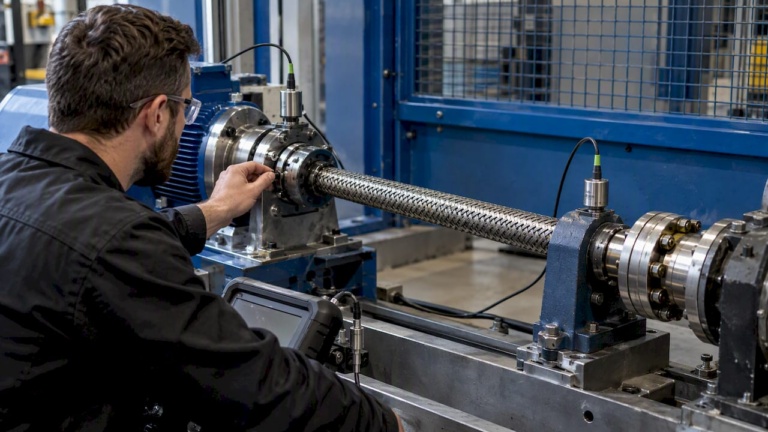

5. Maintain proper tension and alignment to maximize lifespan and performance. Implement regular inspection schedules checking belt condition, tension levels, and alignment accuracy. Use precision alignment tools during installation and after any maintenance work. Document baseline measurements for comparison during routine checks. Preventive maintenance prevents costly failures and extends component life significantly.

6. Engage with manufacturers for custom flexible shaft configuration guidance optimizing shaft design for your specific project needs. Expert consultation identifies potential issues early in the design phase when changes are inexpensive. Manufacturers provide detailed specifications, performance data, and application experience that accelerates development. Collaborative engineering produces better solutions than working in isolation.

Pro Tip: Build physical mockups or digital twins of complex drive system installations before committing to production tooling. This validation step reveals interference issues, maintenance access problems, and performance limitations that drawings alone cannot expose.

Implementation checklist:

• Document all operating requirements including loads, speeds, duty cycles, and environmental conditions
• Create comparison matrices evaluating candidate systems against weighted criteria
• Validate vendor specifications through independent testing or reference checks
• Plan maintenance procedures and spare parts inventory during system design
• Train operators and maintenance personnel on proper operation and inspection procedures
• Establish performance baselines and monitoring protocols to track system health
• Review step by step shaft design for precision applications when flexible shafts are part of your solution

Explore BIAX flexible shaft solutions for your manufacturing needs

Now that you understand flexible drive system selection criteria and options, discover how BIAX can support your specific manufacturing challenges. Our flexible shaft drive solutions deliver compact efficiency and precision in tight spaces where conventional drives cannot operate effectively. We specialize in transmitting torque and rotation through complex paths for deburring, grinding, polishing, and finishing operations.

Access our custom flexible shaft configuration guide to optimize shaft design for your unique requirements. Our engineering team provides detailed consultation on torque and RPM specifications, coupling interfaces, and shaft construction. We support both standard component selection and fully customized solutions matching your exact performance needs.

Benefit from proven industrial shaft applications extending shaft life by up to 40 percent through proper design and material selection. Our products reliably serve demanding applications in the DACH region and international markets. Machine builders and production managers trust BIAX for engineering guidance that improves efficiency and reduces maintenance costs.

Pro Tip: Contact BIAX for personalized consultation optimizing your drive system design for 2026 and beyond. Our application engineers help you navigate technical requirements and select configurations that maximize performance while meeting budget constraints.

FAQ

What are the main types of flexible drive systems used in manufacturing?

The main types include belt drives, direct drives, hydraulic drives, and specialized systems like VICO Flex Drum Driven and strain wave gear reducers such as Nidec FLEXWAVE. Belt drives offer versatility and vibration dampening for general applications. Direct drives provide maximum precision for high speed machining. Hydraulic systems excel in high force, low speed applications. Specialized systems address specific environmental challenges like slippery conditions or extreme compactness requirements.

How does belt tension affect flexible drive system longevity?

Proper belt tension prevents damage including shaft bending, bearing wear, and belt ratcheting that drastically reduce system lifespan. Excessive tension overloads bearings and shafts, causing premature failure. Insufficient tension allows belt slippage and ratcheting that damages belt teeth and pulley surfaces. Engineering analyses show tension variations up to 3X in poorly designed systems, accelerating wear and reducing reliability. Maintaining optimal tension through proper design and regular inspection maximizes component life.

When should I consider a hydraulic motor drive over electromechanical options?

Hydraulic drives are preferred in high torque, high load applications like rubber mixing mills where they offer better energy efficiency and smoother load peaks. The superior power density enables compact installations while the inherent overload protection improves safety. Hydraulic systems handle peak loads without oversizing the prime mover, reducing energy consumption. Consider hydraulics when your application involves high forces at low speeds with frequent load variations. The added complexity of fluid power infrastructure is justified by performance and safety benefits.

What flexibility advantages do shaft drives offer in tight manufacturing spaces?

Flexible shafts maintain 85 to 95 percent efficiency in tight spaces while routing power through complex paths impossible for rigid shafts. They allow compact, precise machine designs that improve operational versatility and reduce assembly complexity. Flexible shafts enable tool positioning around obstacles, through moving joints, and in confined areas. This capability is essential for deburring, grinding, and polishing operations requiring access to hard to reach features. Design freedom improves as engineers can position motors and tools optimally without transmission system constraints.
