Industrial Polishing Step by Step for Aerospace Engineers

7 August 2026

A compact, repeatable step-by-step polishing process using flexible polishing machines and flexible-shaft drives reliably delivers aerospace-grade surface finish when the sequence and parameters below are followed. Peer-reviewed blade polishing research confirms Ra in the range of low submicron values, minor profile change, and small material removal per pass are achievable with five-axis NC abrasive belt methods. Flexible tooling with dual grinding heads achieves Ra < 0.4 µm on blades and blisks when the tool compensates for milling-produced waviness.

Process at a glance:

Inspect incoming geometry and as-milled Ra before any abrasive contact
Set up fixturing, verify flexible-shaft coupling, and select contact wheel
Plan toolpath (iso-parametric or spiral) with correct stepover and attitude vector
Rough polish to remove milling marks; limit material removal to 0.010–0.016 mm per pass
Fine polish to target Ra 0.25–0.4 µm; reduce compression and feed speed
Superfinish journals and bearing faces to Ra 0.2–0.4 µm using oscillating stones or tape
Clean, measure with contact profilometer or optical interferometer, and document

Immediate next actions: confirm as-milled Ra and profile baseline; select abrasive mesh sequence (240# through 600#); verify flexible-shaft torque and RPM ratings against spindle requirements; log abrasives batch and machine program version before the first pass.

Industrial Polishing Step by Step for Aerospace Engineers — overview diagram

Key Takeaways

A repeatable aerospace polishing workflow depends on following the full sequence, controlling Z-axis vibration, and documenting every abrasive batch and Ra measurement for traceability.

Point	Details
Follow the full sequence	Skipping rough or fine polishing stages leaves damage that superfinishing cannot correct.
Target Ra and profile change	Blade surfaces: target fine polishing roughness in a low submicron range; profile change and material removal controlled within precise tolerances.
Minimize Z-axis vibration	Z-axis spindle vibration increases Ra; reduce spindle speed and compression depth first when Ra rises.
Document for traceability	Log machine program version, abrasives batch, measured Ra at each stage, and spindle vibration RMS.
Specify the drive correctly	Verify flexible-shaft torque, RPM, bend radius, and coupling interface with Biax-flexwellen before build.

When does flexible polishing fit your production chain?
What equipment and tooling does a polishing cell require?
Step-by-step polishing procedure with parameter ranges
How do strategies differ for blades versus shafts and seal journals?
How do you tune process parameters for best results?
What are the acceptance criteria and measurement checkpoints?
How do you troubleshoot vibration, over-polish, and pump-screw textures?
Engineering checklist for integrating flexible-shaft drives into polishing equipment
A practical perspective on polishing in production
Biax-flexwellen flexible-shaft drives for polishing workcells
Sources

When does flexible polishing fit your production chain?

Flexible polishing occupies the window between finish milling or grinding and final dimensional acceptance. It adds value where rigid tooling cannot conform to free-form surfaces, narrow channels, or confined assembly envelopes. The abrasive belt flap wheel (ABFW) method uses Hertz elastic-contact modeling to control force on leading and trailing edges (LTE) of aero blades, a task that rigid tooling cannot perform without profile risk.

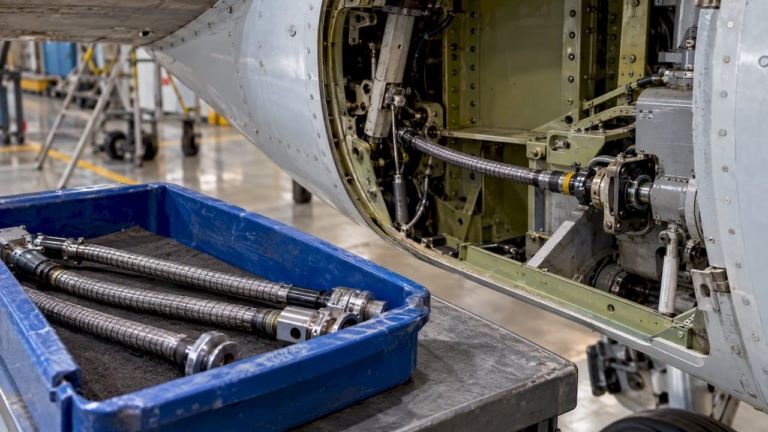

Primary aerospace use cases include blade and blisk LTE finishing, narrow inter-blade channels on integrally bladed rotors, journal and seal-seat finishing on shafts, and confined actuation shaft assemblies. In production, flexible polishing typically follows finish milling and precedes final dimensional inspection. For repair workflows, it corrects localized surface damage without removing the part from the production cell.

What equipment and tooling does a polishing cell require?

Machine categories

Four machine types cover the majority of aerospace polishing tasks. Five-axis NC abrasive belt systems handle open blade surfaces with programmed path control. ABFW systems address LTE geometry with force-controlled flap wheels. Handheld flexible-shaft grinders reach confined channels and repair zones. Automated flexible-tooling spindles integrate into robotic or CNC cells for batch finishing.

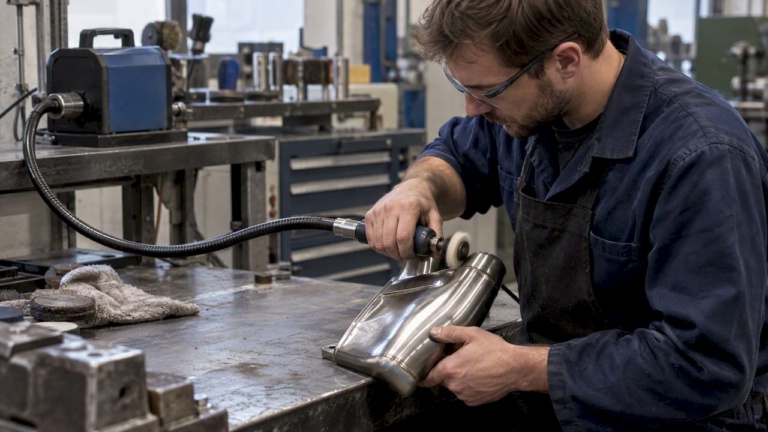

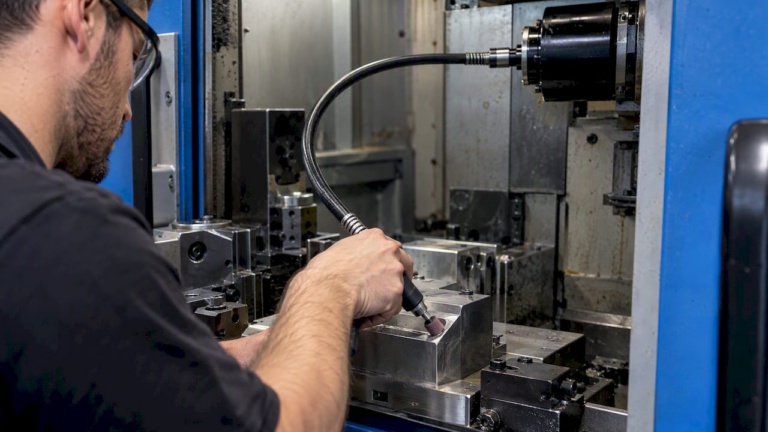

Flexible-shaft grinders separate the motor mass from the working head, transmitting torque through a protected flexible shaft. This allows quick-change accessories — felt bobs, abrasive bobs, diamond compounds — to reach geometry that a direct-drive spindle cannot access.

Multi-layer wound flexible shaft core on bench

Tooling and consumables

Abrasive belts for rough stages typically run 80#–180# mesh; fine polishing uses 240#–600#. Abrasive cloth wheels suit narrow blisk channels: experimental work with a 13.5 mm diameter, 12 mm wide cloth wheel demonstrates controlled material removal on high-curvature features. Contact wheel diameter governs the effective polishing width and conformability; smaller diameters (under 20 mm) are preferred for blade leading edges and channel roots.

Flexible-shaft drive specification checklist

When specifying the flexible-shaft drive interface, capture these parameters before procurement:

Continuous torque rating (Nm) at the expected operating RPM
Peak torque for start-up and grit-loading transients
Allowable RPM range matched to spindle speed requirements
Maximum bend radius without torsional stiffness loss
Coupling style (square drive, hex, collet) and axial runout limit
Shaft length and protective sheath material for the operating environment
Lubrication type and service interval for the flexible core

Pro Tip: Torsional rigidity drops sharply when a flexible shaft operates near its minimum bend radius. Always verify the installed bend radius against the manufacturer’s published stiffness curve before finalizing the machine layout.

Step-by-step polishing procedure with parameter ranges

Step 0: Incoming inspection

Measure as-milled Ra (typically ~1 µm after ball-end milling on alloy blade faces), verify profile geometry against nominal CAD, and confirm hardness and fixture datum condition. Log all baseline values.

Step 1: Setup and fixturing

Locate the part on its datum, torque fixturing to specification, and connect the flexible-shaft drive. Check coupling runout and confirm contact-wheel orientation relative to the polishing axis vector. The polishing axis vector must align with the surface normal at each path point; misalignment increases profile error.

Step 2: Path planning

Select iso-parametric or spiral/helix toolpath strategies. Stepover is determined by polishing width and desired overlap, typically 30–50% of contact width. Normal-vector and feed-direction calculations improve tracking on free-form surfaces and reduce profile error on blade geometry.

Step 3: Rough polishing

Use 80#–180# abrasive belts or cloth wheels. Target material removal of 0.010–0.016 mm per pass. Monitor spindle load and surface temperature; excessive heat causes thermal smear on nickel alloys. Keep compression depth within the validated range for the contact wheel in use.

Step 4: Fine polishing

Progress to 240#–400# abrasive. Reduce compression depth and lower feed speed relative to the rough stage. Target Ra in the low submicron range for aerospace blade surfaces.

Step 5: Superfinishing

Apply oscillating stones or abrasive tape for journals and bearing faces. Superfinishing produces plateau-like surfaces that increase bearing area ratio and extend fatigue life. Target Ra 0.2–0.4 µm for critical journal zones.

Step 6: Cleaning and final inspection

Remove abrasive residue and compounds with an approved solvent. Measure Ra with a contact stylus profilometer; use an optical interferometer for fine finishes below Ra 0.3 µm. Record Ra, profile error, material removed, tool wear state, and spindle vibration readings.

Parameter reference ranges

Parameter	Blade (abrasive belt / cloth wheel)	Journal / shaft
Spindle speed	Per validated DOE result	Per validated DOE result
Abrasive mesh (rough)	80#–180#	80#–180#
Abrasive mesh (fine)	240#–600#	400#–600#
Compression depth	Controlled; minimize Z-axis vibration	Controlled; longitudinal pass
Feed speed	Reduced for fine stage	Reduced for fine stage
Target Ra (fine)	0.25–0.4 µm	0.2–0.4 µm
Material removal per pass	0.010–0.016 mm	Application-dependent
Profile change	~0.007 mm	Monitor per drawing

How do strategies differ for blades versus shafts and seal journals?

Blade-class and blisk-class parts

Five-axis NC abrasive belt polishing and abrasive cloth wheels address open blade surfaces and narrow inter-blade channels. Small contact-wheel diameters (under 20 mm) are necessary for channel roots and LTE geometry. Iso-parametric path planning limits profile change; the ABFW method stabilizes contact force via Hertz contact theory, reducing operator dependence on LTE polishing.

Pro Tip: On blisk channels narrower than 15 mm, switch from abrasive belt to a small-diameter abrasive cloth wheel and reduce stepover to 25% of contact width. This limits under-polish at channel roots without increasing profile error at the blade mid-section.

Journal-class and confined-channel-class parts

For seal journals and shaft bearing zones, longitudinal polishing or plunge strategies prevent helical “pump-screw” textures that degrade seal performance. Grinding removes helical turning marks first, then polishing lowers Ra, and superfinishing creates the plateau surface required for high-pressure sealing zones. Target Ra 0.4–0.8 µm for interference-fit zones where specified by drawing.

Dimension	Blade-class	Journal-class	Confined-channel-class
Suitable part types	Open blade, blisk airfoil	Shaft, bearing journal, seal seat	Blisk channel, slot, confined bore
Achievable Ra	0.25–0.4 µm	0.2–0.4 µm	0.2–0.4 µm
Material removal per pass	0.010–0.016 mm	Application-dependent	Minimize; verify per pass
Risk to functional surfaces	Profile change at LTE	Pump-screw texture on seal zone	Under-polish at root
Tooling size constraint	Contact wheel < 20 mm for LTE	Longitudinal tool orientation	Cloth wheel < 15 mm diameter

How do you tune process parameters for best results?

Spindle speed, compression depth, and feed speed are the three variables with the greatest effect on both Ra and spindle vibration. Optimization experiments on abrasive cloth wheel polishing confirm that an empirical model minimizing vibration and Ra simultaneously is achievable with validated parameter sets. Spindle speed is often the dominant factor affecting vibration amplitude.

Vibration direction matters. Y-direction vibration tends to reduce Ra; Z-axis vibration increases Ra and must be minimized. Measure spindle acceleration by axis at each experimental condition and include Z-axis RMS as an objective function in any parameter study.

A practical three-factor, three-level fractional experiment covers spindle speed, compression depth, and feed speed across the discrete grit sizes available (240#, 400#, 600#). Log Ra before and after each condition, vibration RMS by axis, and material removed per pass. Validated targets from published blade polishing research are Ra 0.25–0.39 µm, profile change approximately 0.007 mm, and material removal 0.010–0.016 mm.

What are the acceptance criteria and measurement checkpoints?

Measurement methods

Contact profilometers measure Ra and Rz on blade and shaft surfaces. Optical interferometers resolve finishes below Ra 0.3 µm and detect plateau texture on superfinished journals. Roundness measurement instruments verify journal geometry after polishing.

Acceptance checklist

Ra within drawing tolerance per part type with low submicron targets for blades and journals.
Profile change within acceptable allowance for blade surfaces.
Material removal within per-pass limit appropriate for blade-class polishing.
No helical texture on seal journals; confirm with profilometer lay assessment
Tool wear within calibrated limits; replace contact wheel on schedule
Spindle vibration Z-axis RMS below threshold established during DOE

Traceability records

Log machine program version, tool serial numbers, abrasives batch, measured Ra values at each stage, and spindle acceleration readings. Flag any out-of-tolerance result for rework disposition before the part advances to the next operation. Precision engineering terminology references help standardize measurement language across inspection records.

How do you troubleshoot vibration, over-polish, and pump-screw textures?

Helical pump-screw patterns on journals result from helical tool motion. Switch to longitudinal polishing or a plunge strategy immediately; re-inspect the seal zone with a profilometer before continuing.

Increased Ra from Z-axis vibration requires reducing spindle speed first, then compression depth. If Ra remains elevated, check contact-wheel balance and bearing condition.

Thermal smear on nickel alloys indicates excessive spindle speed or dwell. Lower RPM, increase feed speed, and verify coolant or lubricant flow.

Over-polish from excessive compression or dwell removes too much material and risks profile deviation. Reduce compression depth and shorten dwell time; re-measure profile before the next pass.

Preventive measures: calibrate contact-wheel position at the start of each shift, replace contact wheels on a scheduled interval, monitor spindle vibration continuously, and keep abrasive belts and compounds free from cross-contamination.

Engineering checklist for integrating flexible-shaft drives into polishing equipment

When specifying or accepting a flexible-shaft drive for a polishing workcell, verify the following items before sign-off.

Mechanical interface:

Coupling type confirmed (square drive, hex, collet) and axial runout within limit
Installed bend radius verified against published stiffness curve
Mounting footprint compatible with machine frame and access envelope
Lubrication type specified; service access point reachable without disassembly

Performance:

Continuous torque and peak torque ratings cover the full operating range
Allowable RPM matches spindle speed requirements at both rough and fine stages
Torsional stiffness adequate for the installed bend radius
Cooling or ventilation requirements for the motor end confirmed

Control and safety:

Emergency-stop integration verified at the drive and machine controller level
Torque-limiting features active to protect abrasive tooling from overload
Speed governor set within validated RPM range
Vibration monitoring ports or sensors accessible for ongoing measurement

Supplier documentation to request:

Test certificates for torque and RPM at rated conditions
Material compatibility notes for sheath and core in the operating environment
Recommended maintenance intervals and lubrication schedule
Configuration drawings for the specific coupling and shaft length

Pro Tip: Request the supplier’s torsional stiffness curve across the full bend-radius range, not just at the nominal straight condition. Stiffness at the installed bend radius determines whether the drive will track spindle speed commands accurately under load.

Biax-flexwellen supports machine builders through the full specification process, from drive selection for surface finishing to custom shaft configurations matched to torque, RPM, and coupling requirements.

A practical perspective on polishing in production

The gap between laboratory parameter results and production repeatability is wider than most process plans anticipate. Spindle vibration, abrasive wear rate, and fixturing compliance all shift between the first part and the fiftieth. The engineers who close that gap fastest are the ones who treat the initial DOE as a starting point, not a final answer, and who build vibration monitoring and abrasive batch logging into the standard work from day one.

Throughput pressure frequently pushes teams to skip the fine polishing stage and go directly from rough to superfinishing. The surface left by that shortcut rarely meets the plateau texture requirement for seal journals, and the rework cost exceeds the time saved. The sequence exists for a reason: each stage removes the damage left by the previous one.

Supplier collaboration on flexible-shaft configuration is underused. A shaft specified for the correct bend radius, torque, and RPM at the installed geometry eliminates a significant source of process variability before the first part is fixtured.

Biax-flexwellen flexible-shaft drives for polishing workcells

Specifying the right flexible-shaft drive is one of the most direct ways to reduce process variability in a polishing cell. Biax-flexwellen provides standard and custom flexible-shaft assemblies matched to the torque, RPM, coupling interface, and bend-radius requirements of polishing applications, including confined aerospace finishing tasks where direct-drive spindles cannot reach.

For machine builders and OEMs, the specification process starts with torque and RPM requirements at the tool head, the installed bend radius, and the coupling interface at both the motor and tool ends. Biax-flexwellen supplies configuration drawings, test curves, and maintenance interval data so process engineers can validate the drive against their workcell requirements before build. Explore flexible-shaft applications for industrial manufacturing or contact the engineering team directly for configuration support and custom design assistance.
